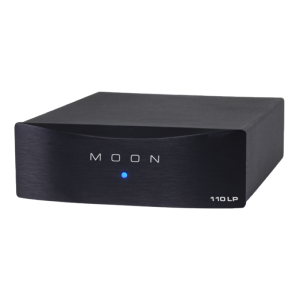

Simaudio Moon 110LP V2

Entrylevel forstærker fra SimAudio — Moon 110LP

110LP V2 er en ny udgave af Simaudios bestseller med samme navn.

110LP V2 er en fremragende RIAA i et robust og kompakt design, og den er tiltænkt både MM og MC-pickupper med de gængse justerbare parametre.

Tilslutningen er RCA på både ind- og udgang.

Vis mere

Tekniske specifikationer

Circuit Layout: Mirror-image symmetrical circuit

Single-ended inputs: 1 pair (RCA)

Input Impedance — Adjustable: 10Ω / 100Ω / 475Ω / 47kΩ

Input Capacitance — Adjustable: 0 / 100pF / 330pF / 430pF

Gain Level — Adjustable: 40dB / 50dB / 54dB / 60dB / 66dB

Curve: IEC / RIAA

Signal-to-noise Ratio (full scale @40 dB gain): 104 dB

Signal-to-noise Ratio (full scale @60 dB gain): 87 dB

Frequency Response: 20Hz - 20kHz (± 0.5dB)

Intermodulation Distortion: 0.002%

THD (20Hz - 20kHz): 0.002%

Power Consumption @ idle: 2 W

AC Power Requirements: 100-240V 50Hz / 60 Hz

Dimensions (WxHxD): 12.7 x 4.2 x 16.5 cm (5.0" x 1.65" x 6.5")

Shipping Weight: 1.5 kg (3.3 lbs)

________________________________________

Features

End-user adjustable impedance loading (47kΩ, 475Ω, 100Ω, 10Ω)
End-user adjustable capacitance loading (0pF, 100pF, 330pF, 430pF)
End-user adjustable gain settings for moving magnet and moving coil cartridges (40dB, 50dB, 54dB, 60dB, 66dB)
End user selectable curve (IEC/RIAA)
Four layer PCB tracings using pure copper for low impedance characteristics
Inductive DC Filtering for a significantly lower noise floor
Compact, rigid all-aluminum chassis with gold-plated RCA connectors
Designed to be powered up at all times for optimal performance
